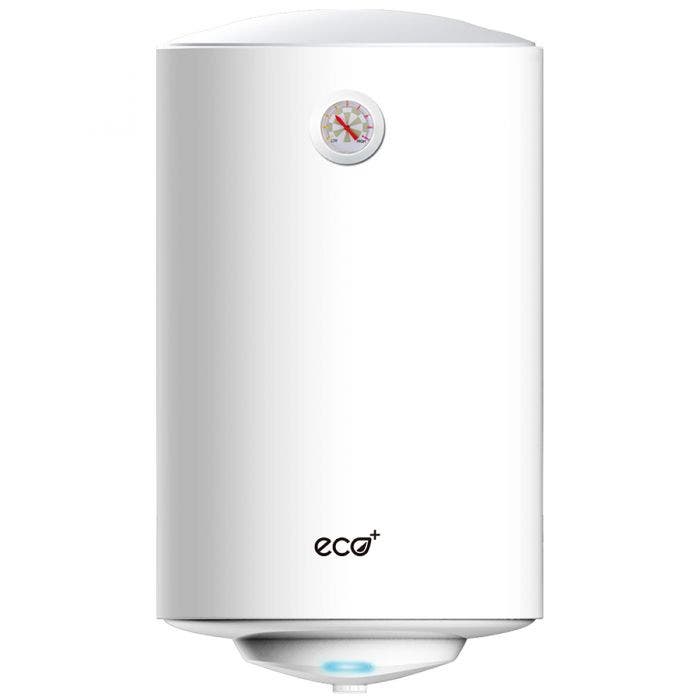

Eco+ 30 liter water heater (Geyser)

ECO+ WATER HEATER ECWH-D30V

Key features

  • Enamel Coated Tank
  • Energy Efficiency Enhancer
  • Overheat Protection
  • Over Pressure Protection
  • Long Life Type Magnesium Rod
  • Max Working Pressure
  • Dry Heat Protection
  • Earthling Protection
  • Water-proof Grade IPX4
৳ 8,665
ADD TO COMPARE
Eco+ 30 liter water heater (Geyser)
৳ 8,665

MODEL ECO+ WATER HEATER ECWH-D30V
Capacity,L 30
Rated Power,W 1500
Voltage,V 220/230
Frequency,HZ 50/60
Current,A 6.81/6.52
External Dimensions H/W/D,mm φ340*578
Net Weight,Kg  14.4
Gross Weight,Kg 16.3
Number Of People 1-2
Control Panel MECHANICAL
Type Of Thermostat Capillary Thermostat
Temperature Range,℃ 30-75
Maximum Working Pressure,Mpa 0.75
Degree Of Protection Against Humidity IPX4
Temperature Indicator Y
Heating Indicator Y
Power Indicator N
Over Heat Protection Y
Max Temperature 101
Mixing valve N
Protection Against Freezing N
Inner Tank Enamel tank
Type of Caoting Enamel
Density of Insulation,Kg/m³ 33-35
Magnesium Anode Size,mm φ18*110
Type of Heating Element  SUS316L
Power Cable length 1.0
Type Of Mounting VERTICAL
Standard Mount Hang Mount
Water Connection size G1/2
Mount Accessory Bulgy Screw
Carton size,mm  405*370*595
Overview+
Close
Product Details
  • Brand
    ECO+
Highlights
  • Model No
    ECO+ WATER HEATER ECWH-D30V
  • Rated Power (W)
    1500
  • Voltage (V)
    220/230
  • Frequency (HZ)
    50/60
  • Current (A)
    6.81/6.52
  • External Dimensions (H/W/D)mm
    φ340*578
  • Number Of People
    1-2
  • Control system
    MECHANICAL
  • Type Of Thermostat
    Capillary Thermostat
  • Temperature Range (℃)
    30-75
  • Degree Of Protection Against Humidity
    IPX4
  • Maximum Working Pressure (Mpa)
    0.75
  • Temperature Indicator
    Yes
  • Heating Indicator
    Yes
  • Max Temperature
    101
  • Over Heat Protection
    Yes
  • Inner Tank
    Enamel tank
  • Density of Insulation (Kg/m³)
    33-35
  • Magnesium Anode Size (mm)
    φ18*110
  • Type of Coating
    Enamel
  • Type of Heating Element
    SUS316L
  • Power Cable length
    1.0
  • Type Of Mounting
    VERTICAL
  • Standard Mount
    Hang Mount
  • Water Connection size
    G1/2
  • Mount Accessory
    Bulgy Screw
Dimension and Weight
  • Net Weight (Kg)
    14.4
  • Gross Weight (Kg)
    16.3
SPECS+

What People are saying

There is no reviews in this product.
REVIEWS+
We're here to support you with our product.
SUPPORT+

More Information

More Information
Brand ECO+
Model No ECO+ WATER HEATER ECWH-D30V
Rated Power (W) 1500
Voltage (V) 220/230
Frequency (HZ) 50/60
Current (A) 6.81/6.52
External Dimensions (H/W/D)mm φ340*578
Number Of People 1-2
Control system MECHANICAL
Type Of Thermostat Capillary Thermostat
Temperature Range (℃) 30-75
Degree Of Protection Against Humidity IPX4
Maximum Working Pressure (Mpa) 0.75
Temperature Indicator Yes
Heating Indicator Yes
Power Indicator No
Max Temperature 101
Mixing valve No
Over Heat Protection Yes
Protection Against Freezing No
Inner Tank Enamel tank
Density of Insulation (Kg/m³) 33-35
Magnesium Anode Size (mm) φ18*110
Type of Coating Enamel
Type of Heating Element SUS316L
Power Cable length 1.0
Type Of Mounting VERTICAL
Standard Mount Hang Mount
Water Connection size G1/2
Mount Accessory Bulgy Screw
Net Weight (Kg) 14.4
Gross Weight (Kg) 16.3
